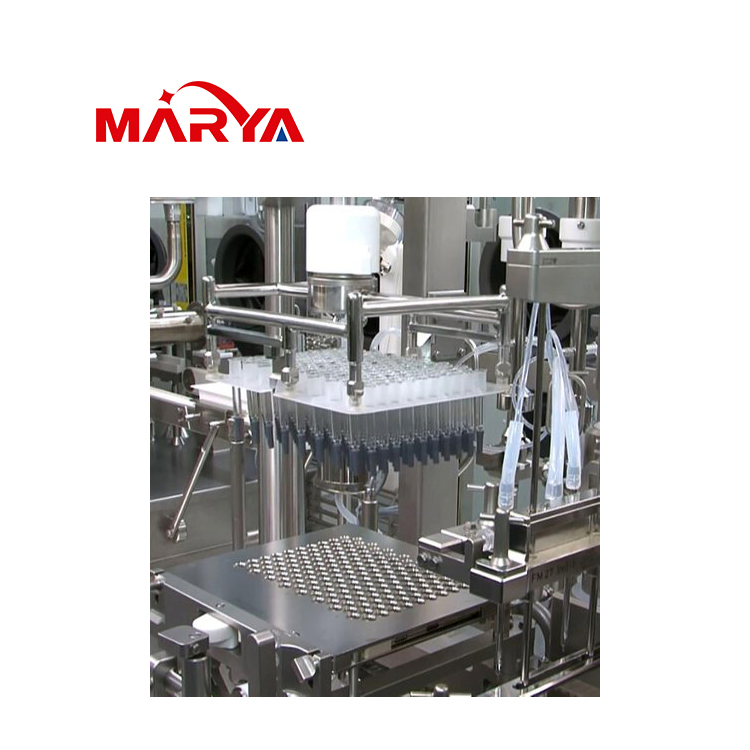

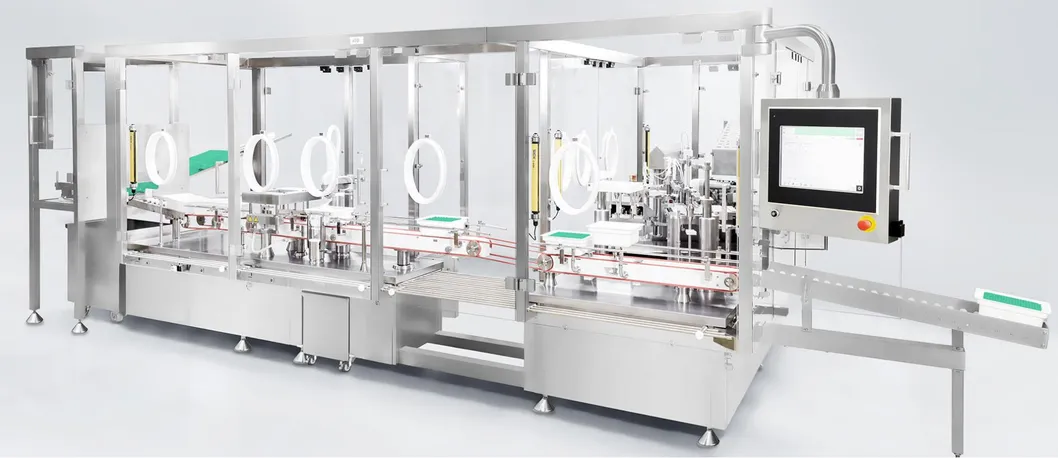

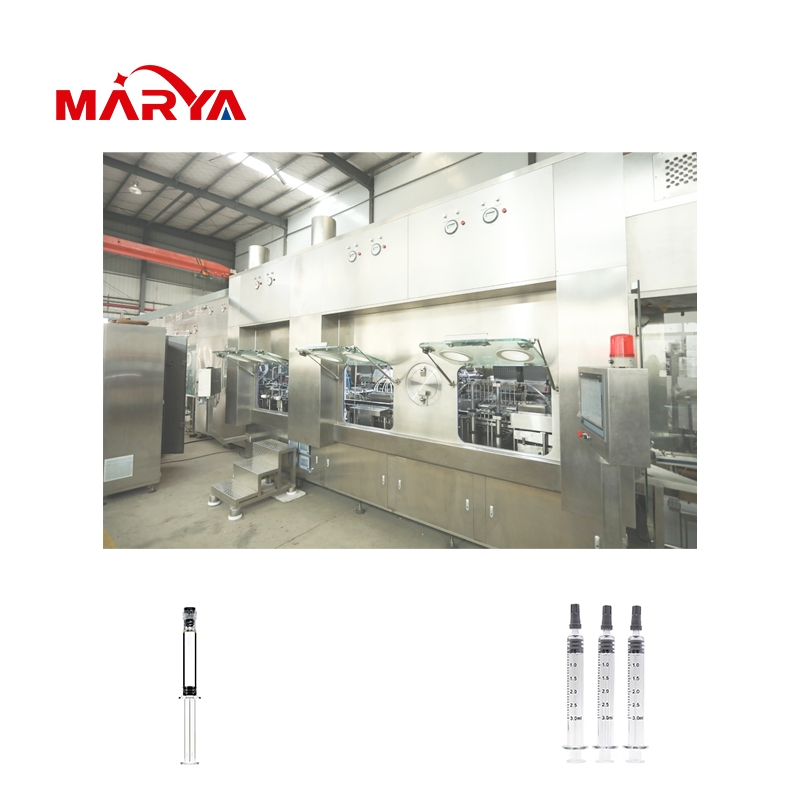

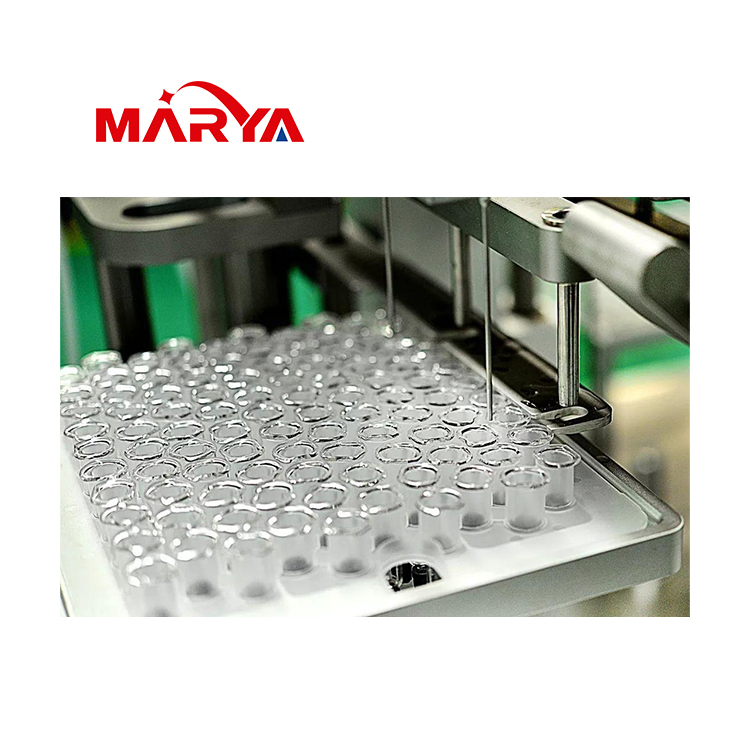

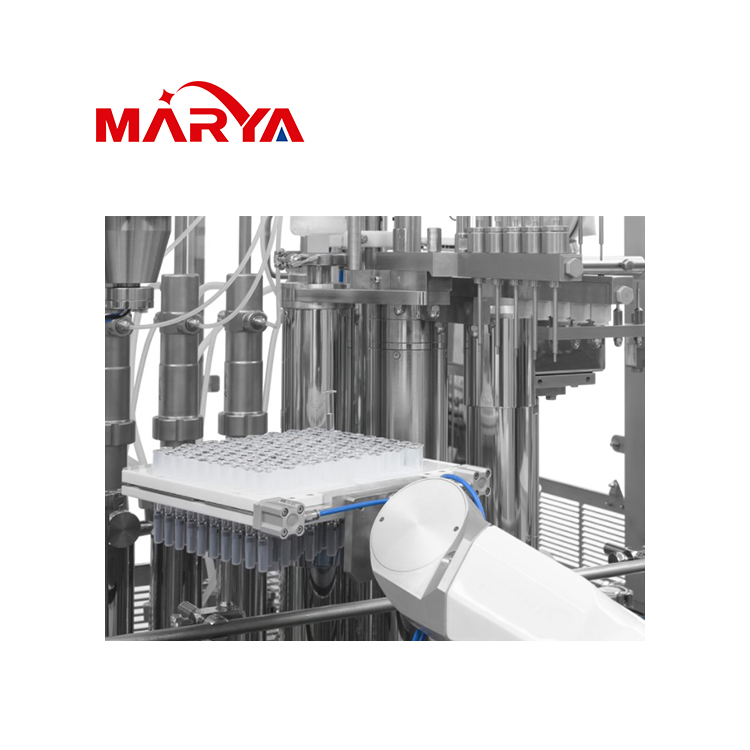

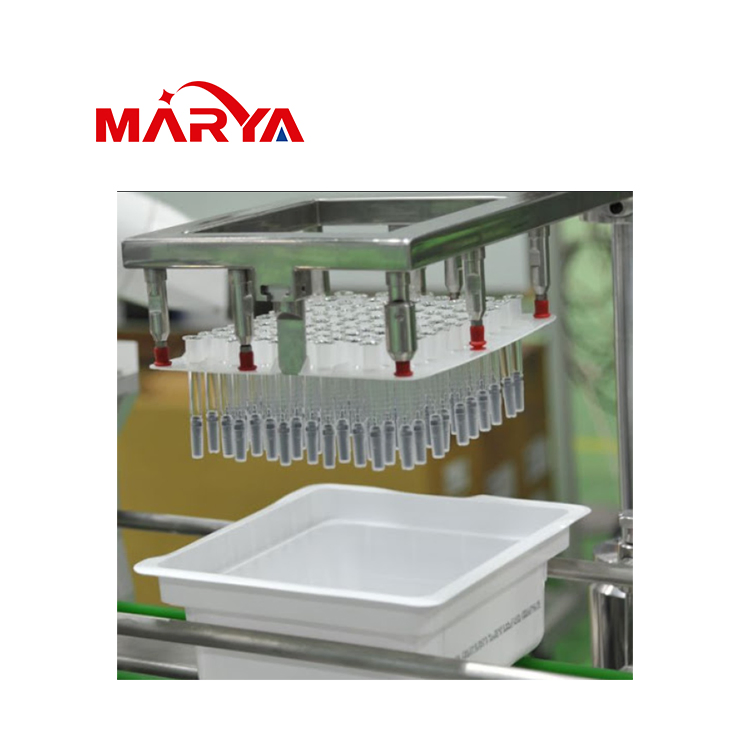

This Sterile Prefilled Injection Syringe Filling and Sealing System is a high-performance solution designed for pharmaceutical plants. It excels in unpacking, tearing, filling, and plugging disposable syringes in honeycomb trays. This system is primarily utilized for the production and packaging of aseptic products such as vaccines, monoclonal antibodies, heparin, insulin, and hyaluronic acid.
| Suitable Product Range | 0.1-20ml (change specification parts properly) |
| Power Supply | 380V 50Hz |
| Power | 4.4kw |
| Filling Error | +/-1% |
| Compress Air Pressure | 0.6~0.8MPa 20m³/h |
| Auto Stoppering Rate | >=99.5% |
| Machine Noise | <=70dB |
| Weight | 750kg |
| Dimension | 1630X1320X1700(mm) |

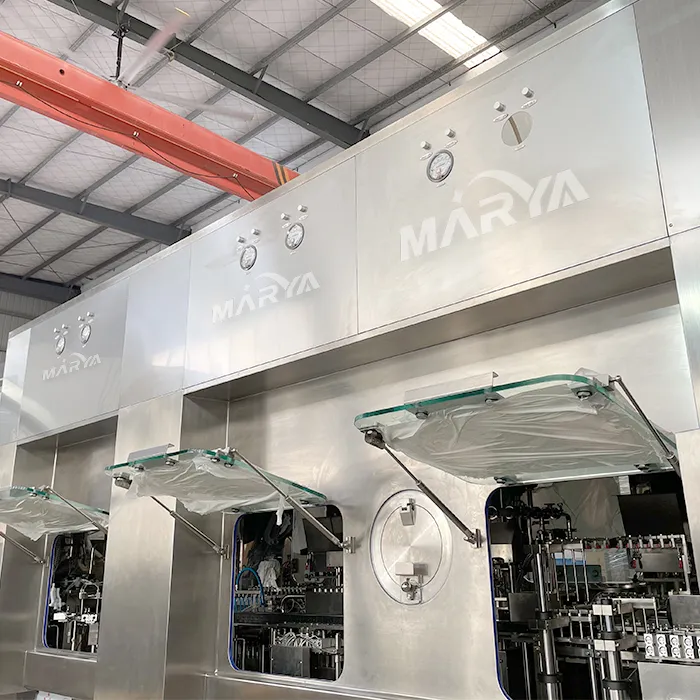

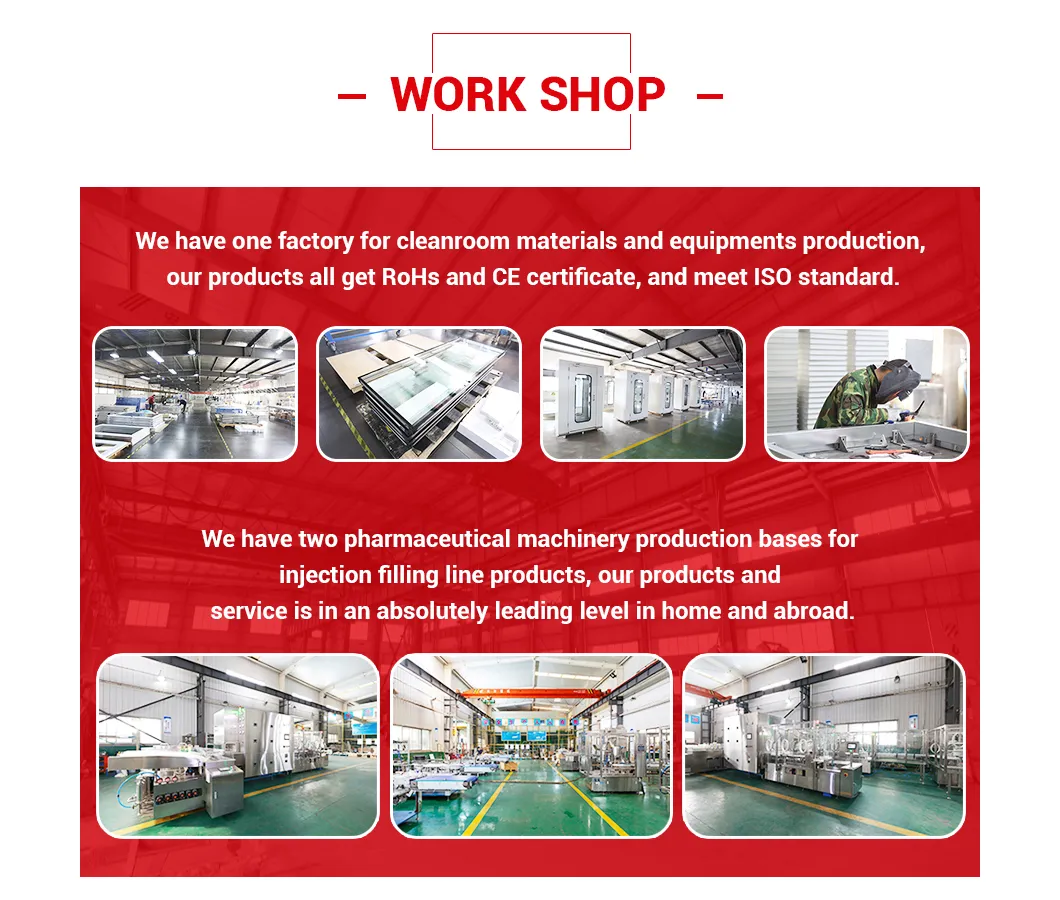

Our workshop focuses on precision engineering and strict quality control to meet global pharmaceutical standards.
The system supports a filling range from 0.1ml to 20ml with a filling accuracy of ≤ ± 1%, depending on the specific characteristics of the medicine.
It is designed for aseptic products including vaccines, monoclonal antibodies, small molecule heparin, insulin, and hyaluronic acid.
Yes, the design, materials, manufacturing, and assembly are all in strict accordance with the latest GMP regulations.

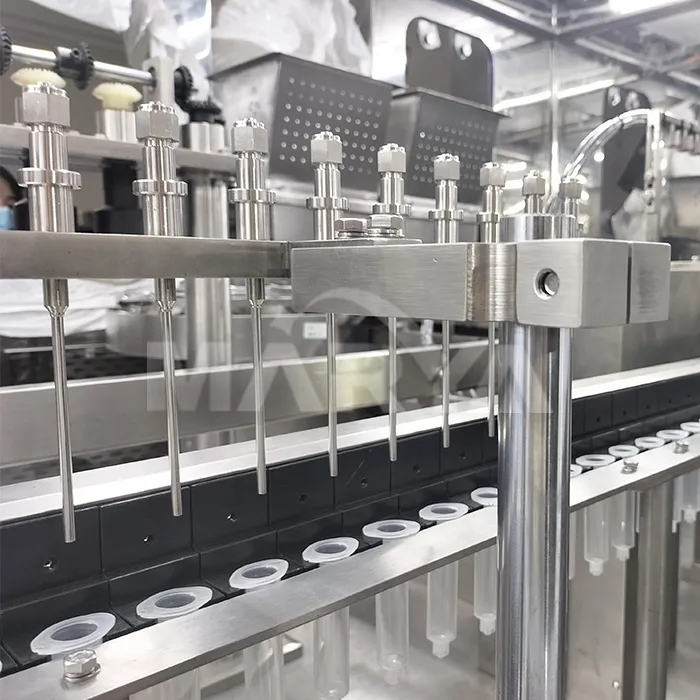

Users can choose between various types of filling pumps, including metal pumps, peristaltic pumps, and ceramic pumps based on their specific needs.
Yes, the system can be equipped with a vacuum filling unit specifically designed for the precise filling of highly viscous products.
Yes, a nitrogen filling unit can be configured to isolate the medicinal solution from oxygen, ensuring product stability.
