Product Description

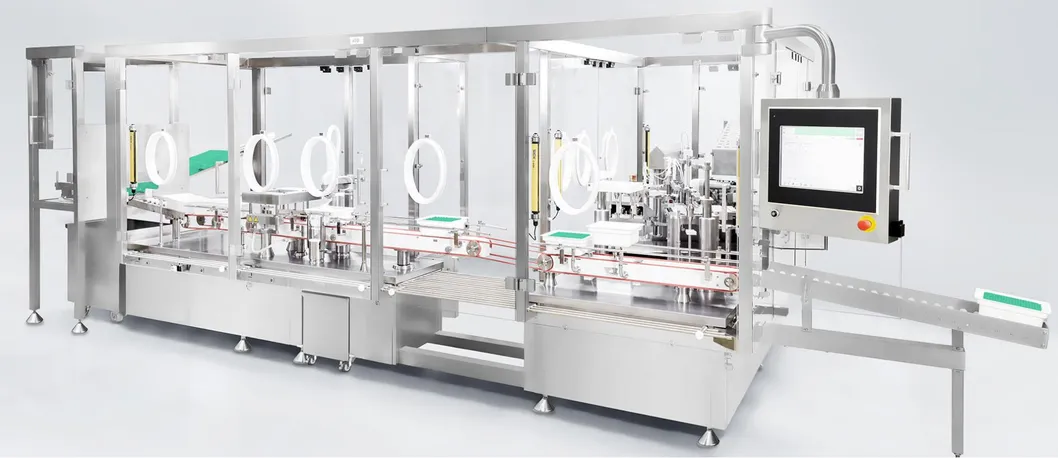

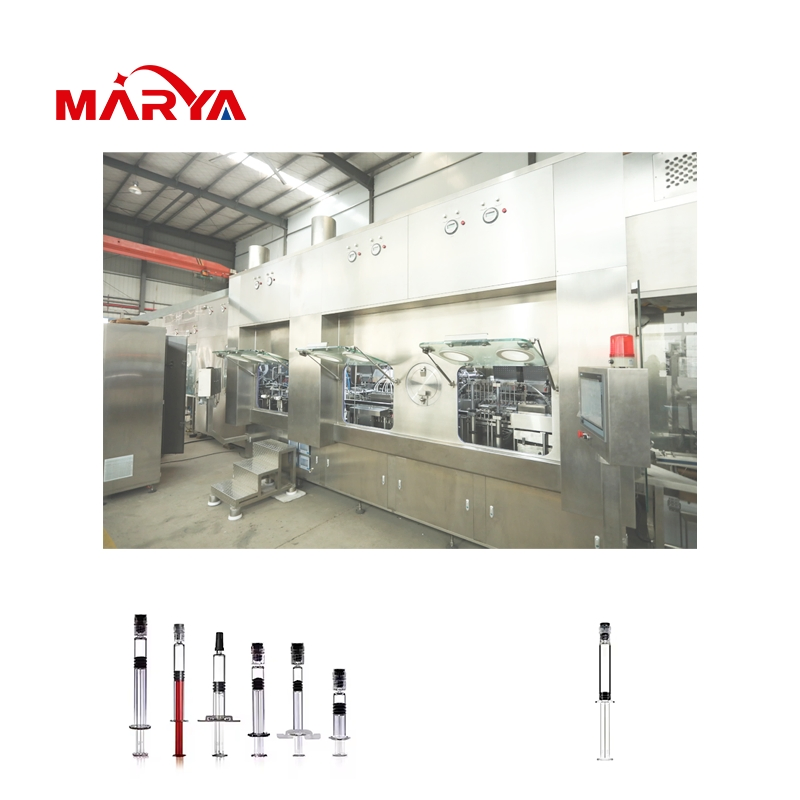

High-end Injectable Filling System for Prefilled Syringes

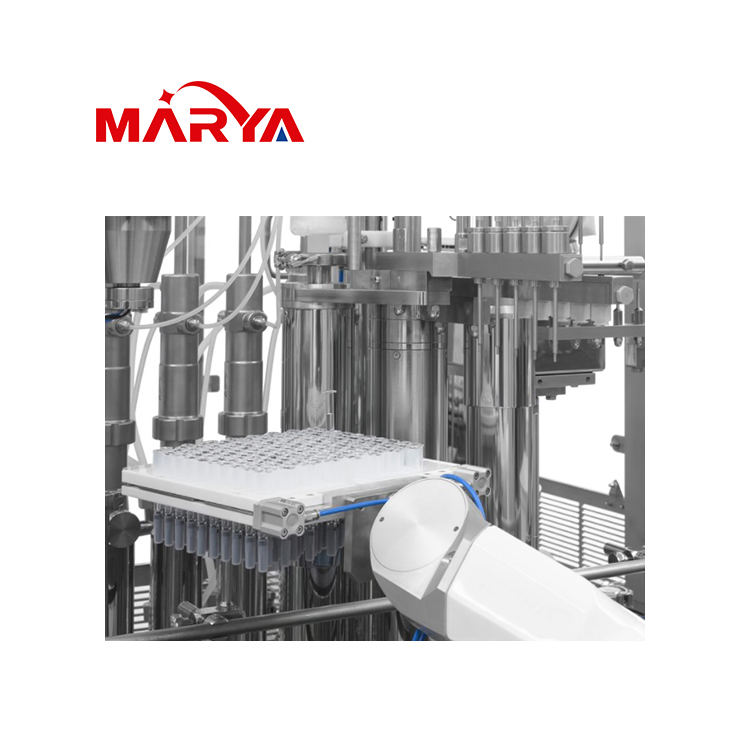

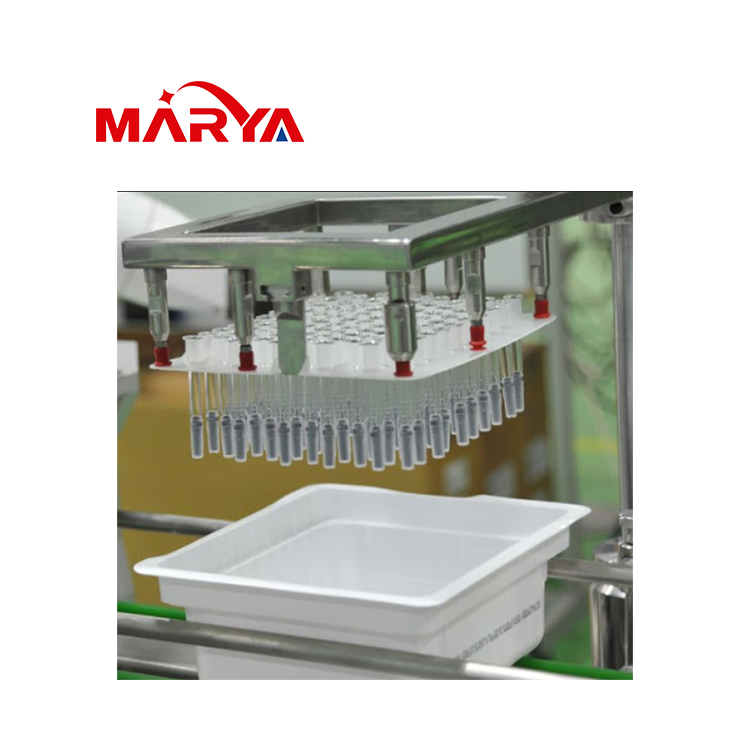

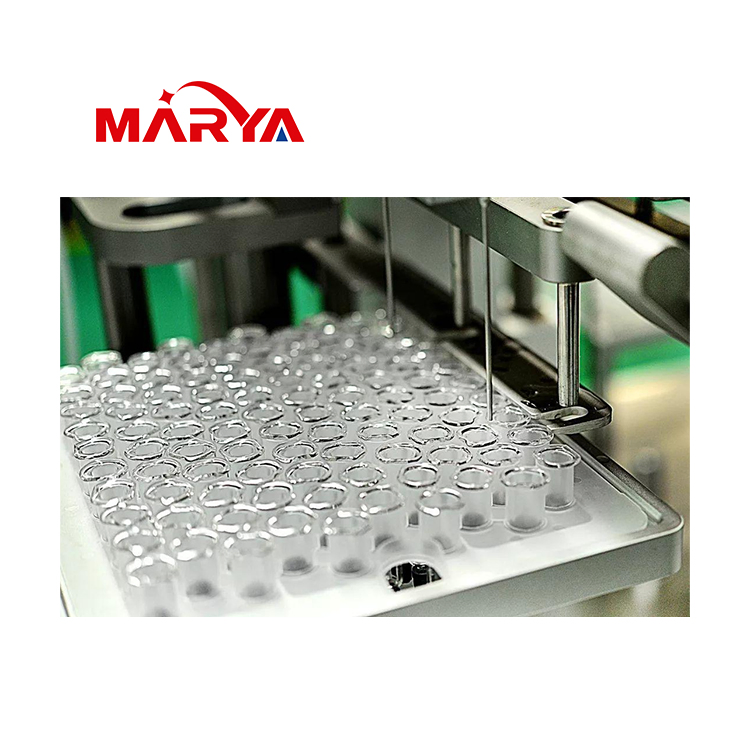

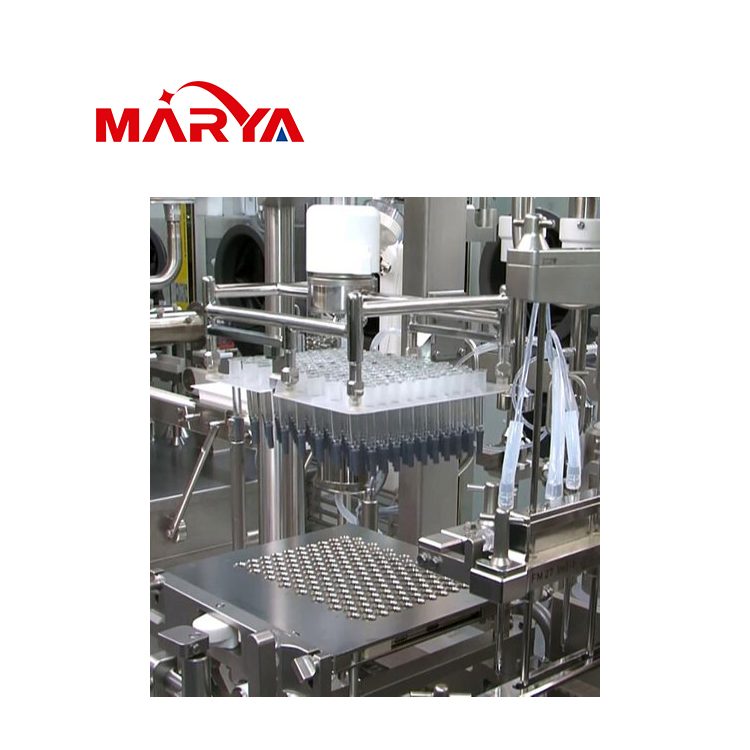

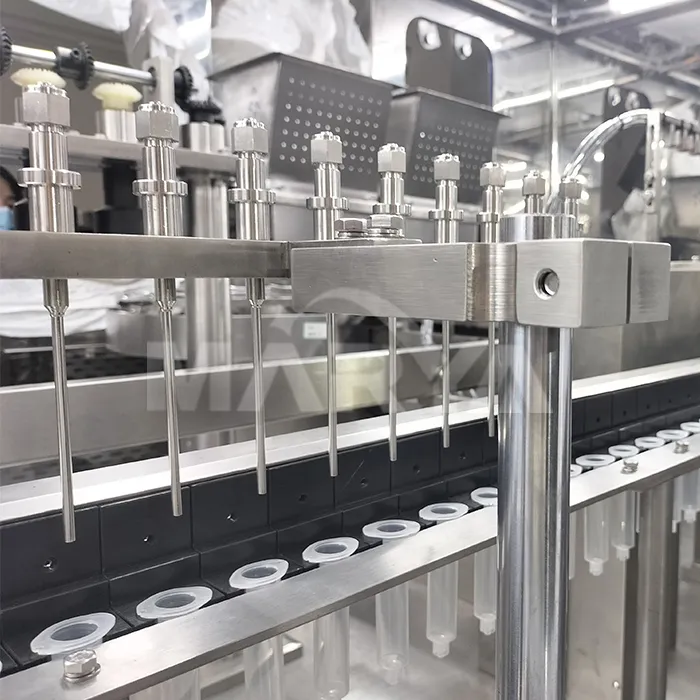

The Syringe Filling System is mainly used for the unpacking, tearing, filling and plugging of disposable syringes in honeycomb trays in pharmaceutical plants. It is designed for the production and packaging of various aseptic products such as vaccines, monoclonal antibodies, small molecule heparin, insulin, and hyaluronic acid.
📊
Technical Parameters
| Suitable Product Range | 0.1-20ml (change specification parts properly) |
| Power Supply | 380V 50Hz |
| Power | 4.4kw |
| Filling Error | +/-1% |
| Compress Air Pressure | 0.6~0.8MPa 20m³/h |
| Auto Stoppering Rate | >=99.5% |
| Weight | 750kg |
| Dimension | 1630X1320X1700(mm) |
❓
Frequently Asked Questions
What is the filling range of this syringe system?
The system supports a filling range from 0.1ml to 20ml, depending on the specifications and change parts used.
How accurate is the filling process?
The filling accuracy is ≤ ± 1%, which varies slightly based on the specific characteristics of the medicine.
Does the machine comply with GMP standards?
Yes, the entire design, material selection, and manufacturing process are in full compliance with the latest GMP regulations.
Can it handle highly viscous products?
Yes, the machine can be configured with a specialized vacuum filling system specifically designed for high-viscosity products.
What types of pumps are available for filling?
We offer several options including metal pumps, peristaltic pumps, and ceramic pumps to suit different medicinal requirements.
What is the production capacity?
The capacity ranges from 2,000 to 30,000 bottles per hour (bph), depending on the number of filling heads selected (2-10 PCS).
