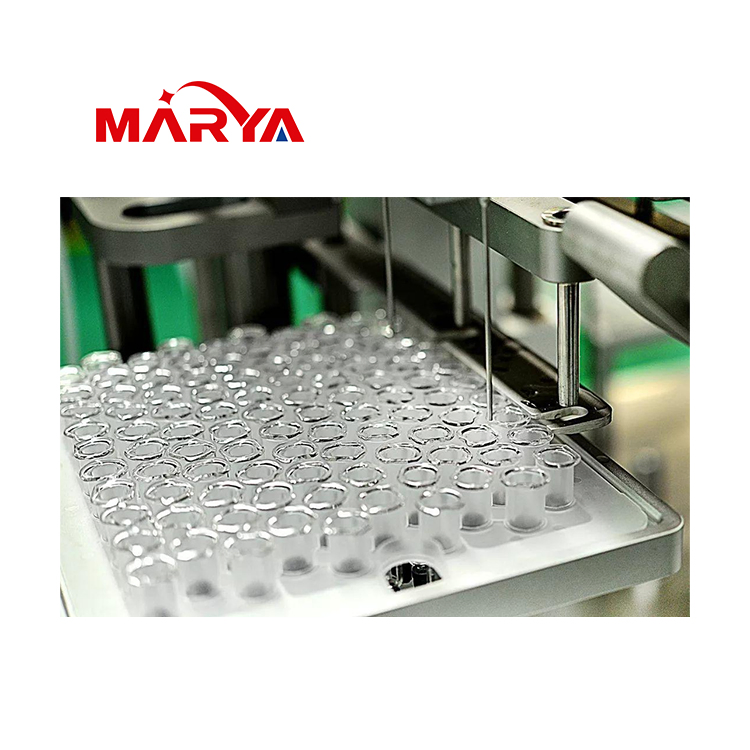

Marya Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System
Marya Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System
Marya Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System
Marya Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System
Marya Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System
1 / 5
Marya Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System
Marya Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System
Marya Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System
Marya Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System
Marya Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System

Marya Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System

Customization: Available
After-sales Service: Field Installation, Commissioning and Training
Warranty: 1 Year Warranty
Send Inquiry

Product Description

Basic Information
TypePiston Filling Machine
Automatic GradeFully Automatic
Material TypeLiquid
Filling Valve HeadMulti-Head
Feed Cylinder StructureMulti-Room Feeding
Dosing DeviceCapacity Cup
Filling PrincipleVacuum
StructureLinear
Packaging MaterialPlastic
Suitable Product Range0.1-20ml
Control SystemPLC Control
Machine Size3500*1500*1800mm
Production Capacity10000PCS/Month
Product Description

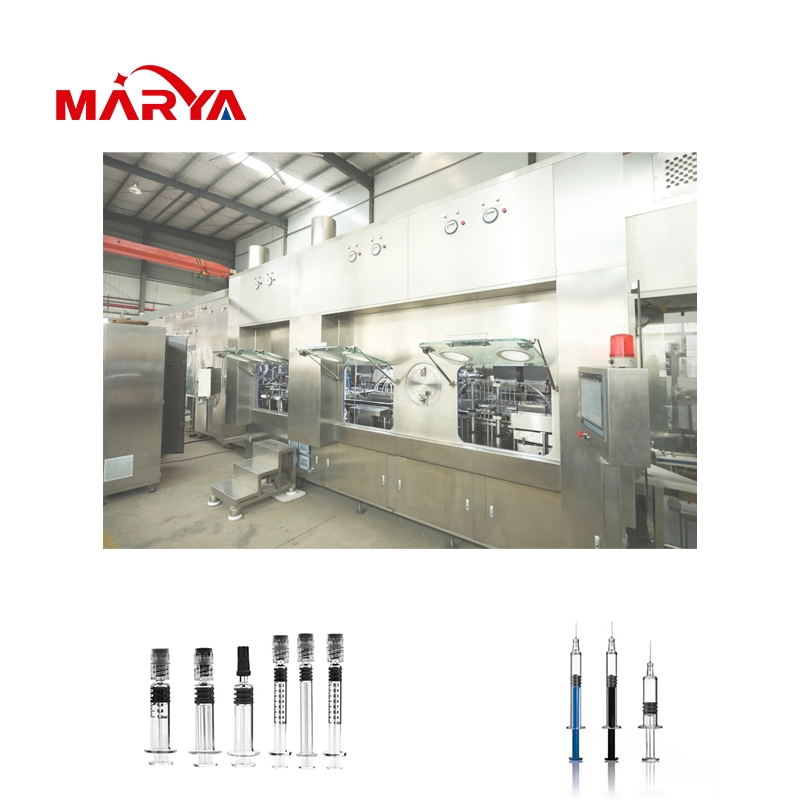

Injectable Syringe Filling Machine Pharmaceutical Aseptic Prefilled Syringe Filling System

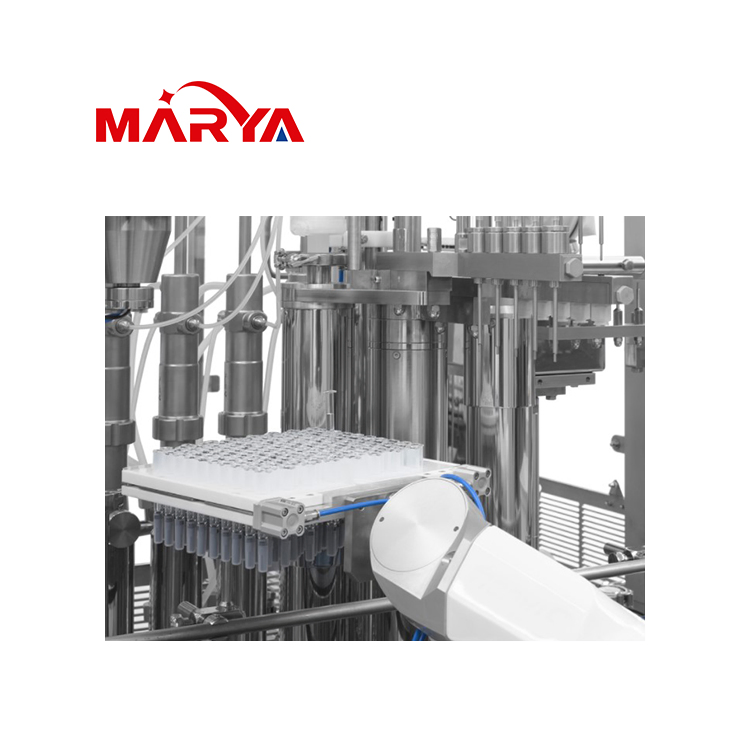

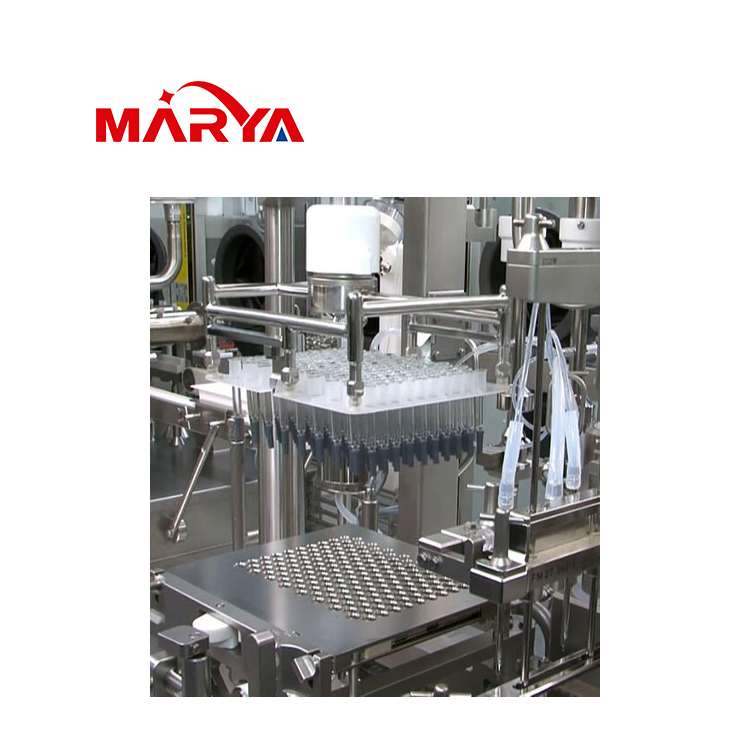

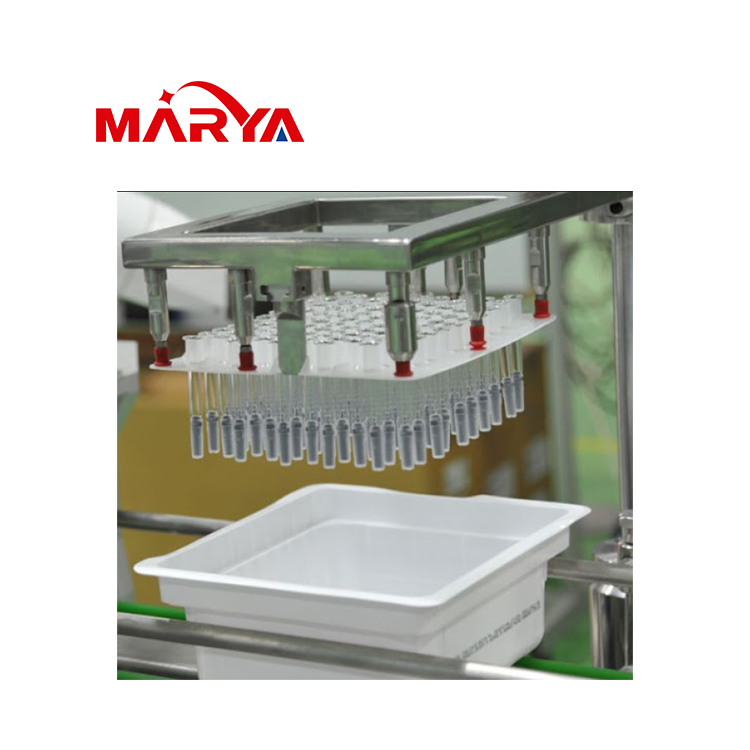

This Syringe Filling System is primarily utilized for unpacking, tearing, filling, and plugging disposable syringes within honeycomb trays in pharmaceutical facilities. It is designed for high-standard production of aseptic products including vaccines, monoclonal antibodies, insulin, and hyaluronic acid.

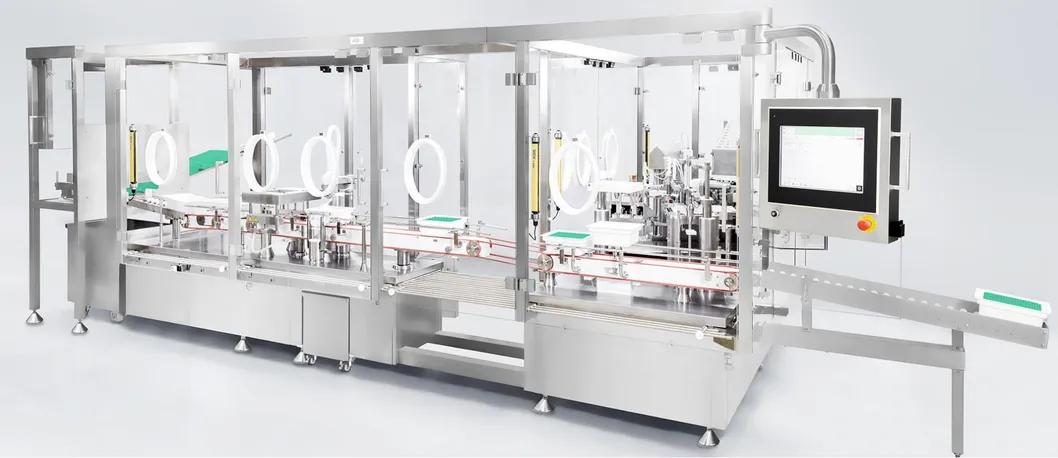

Syringe Filling Machine
Technical Parameters
Suitable Product Range0.1-20ml (adjustable specifications)
Power Supply380V 50Hz
Power4.4kw
Filling Error+/-1%
Compress Air Pressure0.6~0.8MPa 20m³/h
Auto Stoppering Rate>=99.5%
Single Machine Noise<=70dB
Weight750kg
Dimension1630X1320X1700(mm)
Performance Features
  • Complies with the latest GMP regulations for design, manufacturing, and assembly.
  • Adopts a servo control system for automated honeycomb tray unpacking, conveying, filling, and plugging.
  • Equipped with intelligent testing devices for high-precision production control.
  • Filling capacity ranges from 2000 to 30,000 bph depending on configuration.
  • Options for filling pumps: metal, peristaltic, or ceramic pumps.
  • Main drive components are located at the bottom of the frame to prevent environmental pollution.
  • Nitrogen filling unit and vacuum filling options available for oxygen-sensitive or high-viscosity products.
  • Configurable with Open-RABS or closed aseptic Isolator systems for maximum protection.

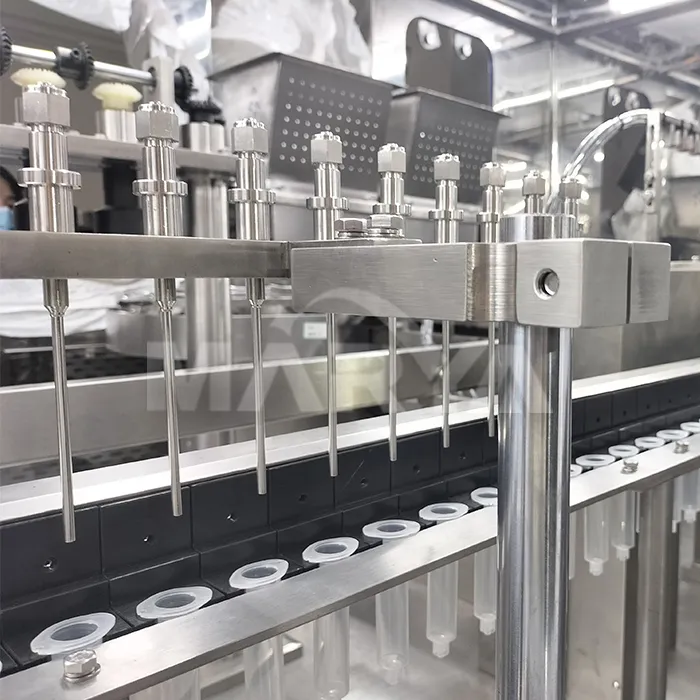

Filling System Detail 1

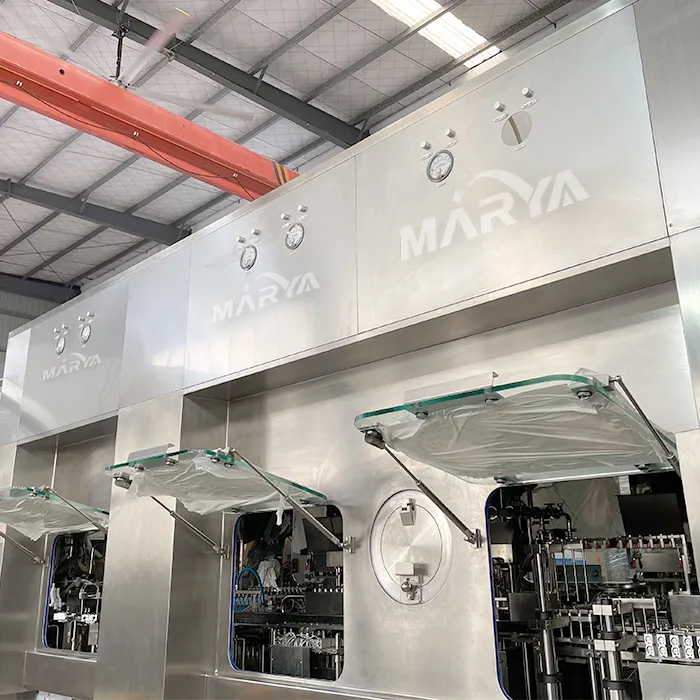

Filling System Detail 2

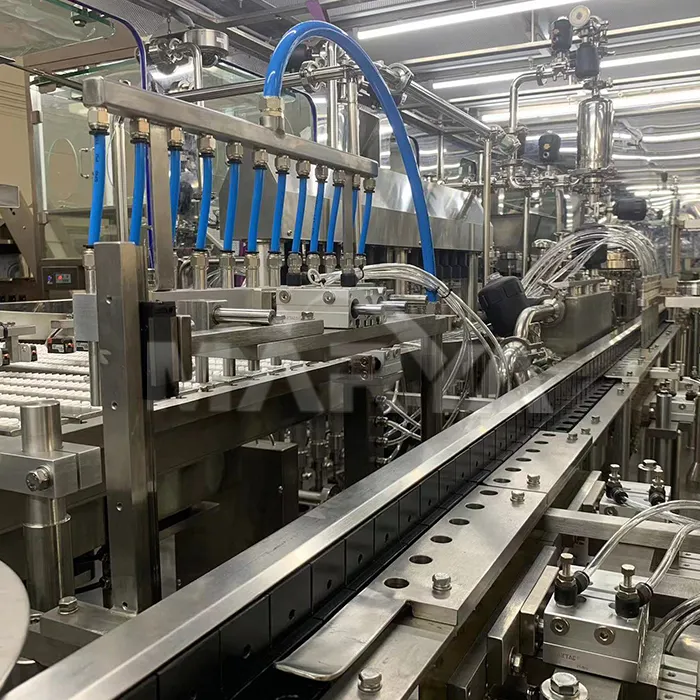

Filling System Detail 3
Facility and Quality Assurance
About Facility
Quality Standards

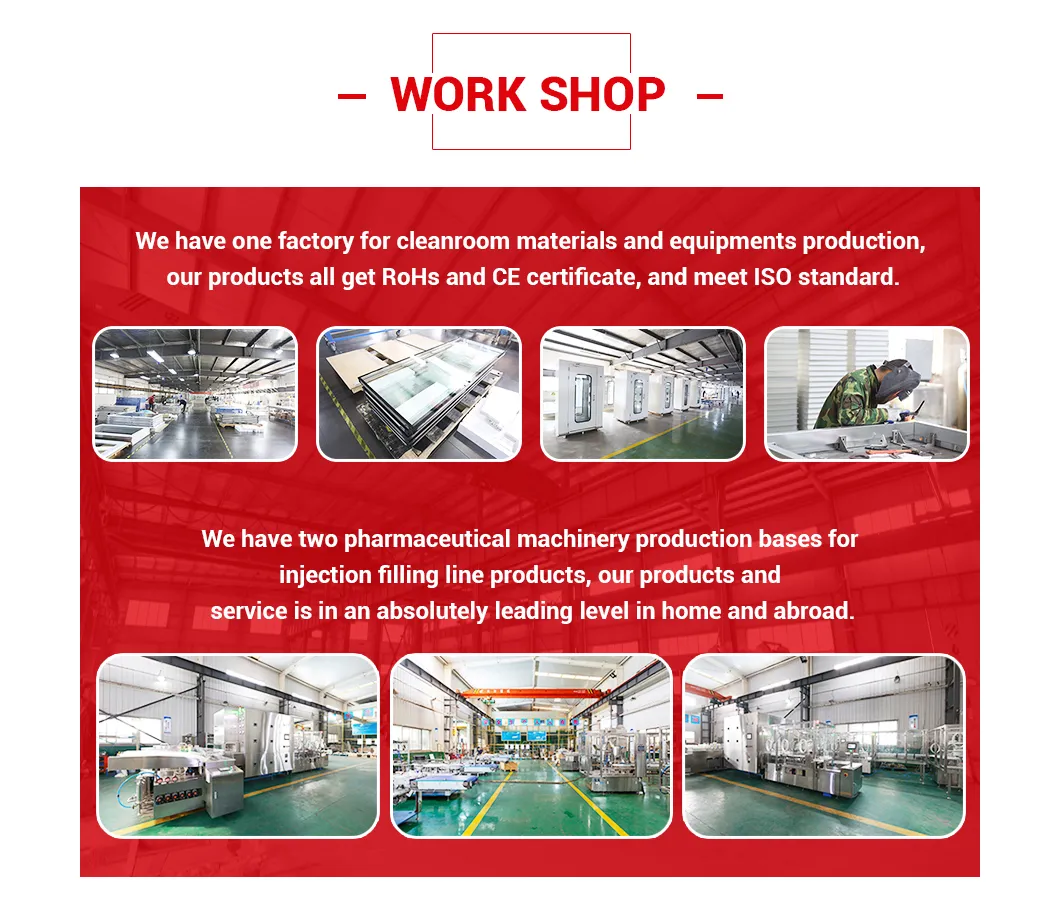

Workshop
Certificates & Global Projects
Certificate 1
Certificate 2

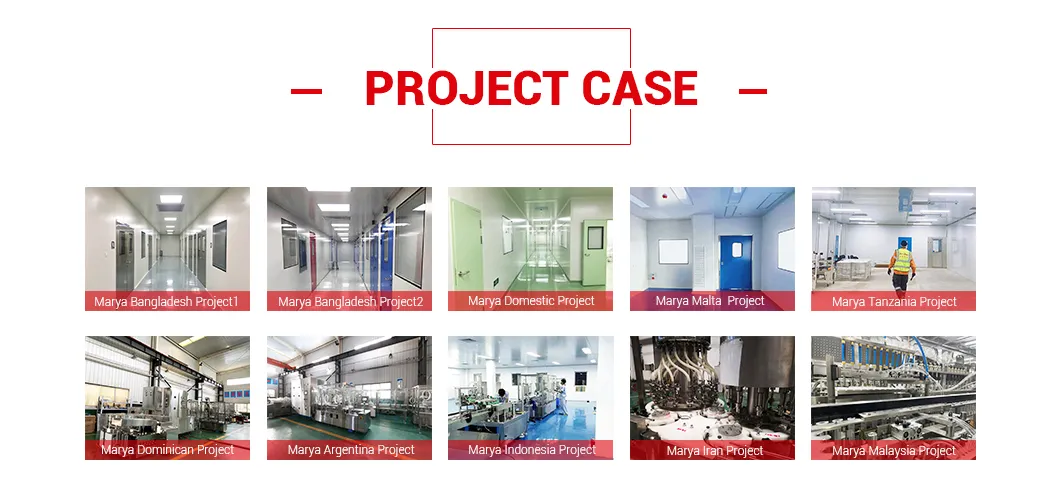

Project Case 1
Project Case 2
Packaging & Shipping
Packaging Process
Frequently Asked Questions
What is the filling range of this system?
The machine is capable of filling volumes ranging from 0.1ml to 20ml by properly changing the specification parts.
What is the accuracy of the filling process?
The filling error is highly controlled within ≤ ± 1%, depending on the specific characteristics of the liquid.
Does the machine comply with international standards?
Yes, the design, materials, and manufacturing of the machine fully comply with the latest GMP regulations for pharmaceutical equipment.
What types of pumps can be used for filling?
Depending on your product needs, you can choose between metal pumps, peristaltic pumps, or ceramic pumps.
Is the system suitable for high-viscosity liquids?
Yes, the machine can be equipped with a vacuum filling system specifically designed for processing highly viscous products.
What kind of control system does it use?
The machine utilizes a PLC automatic control system combined with a high-precision color touchscreen for operation and monitoring.
