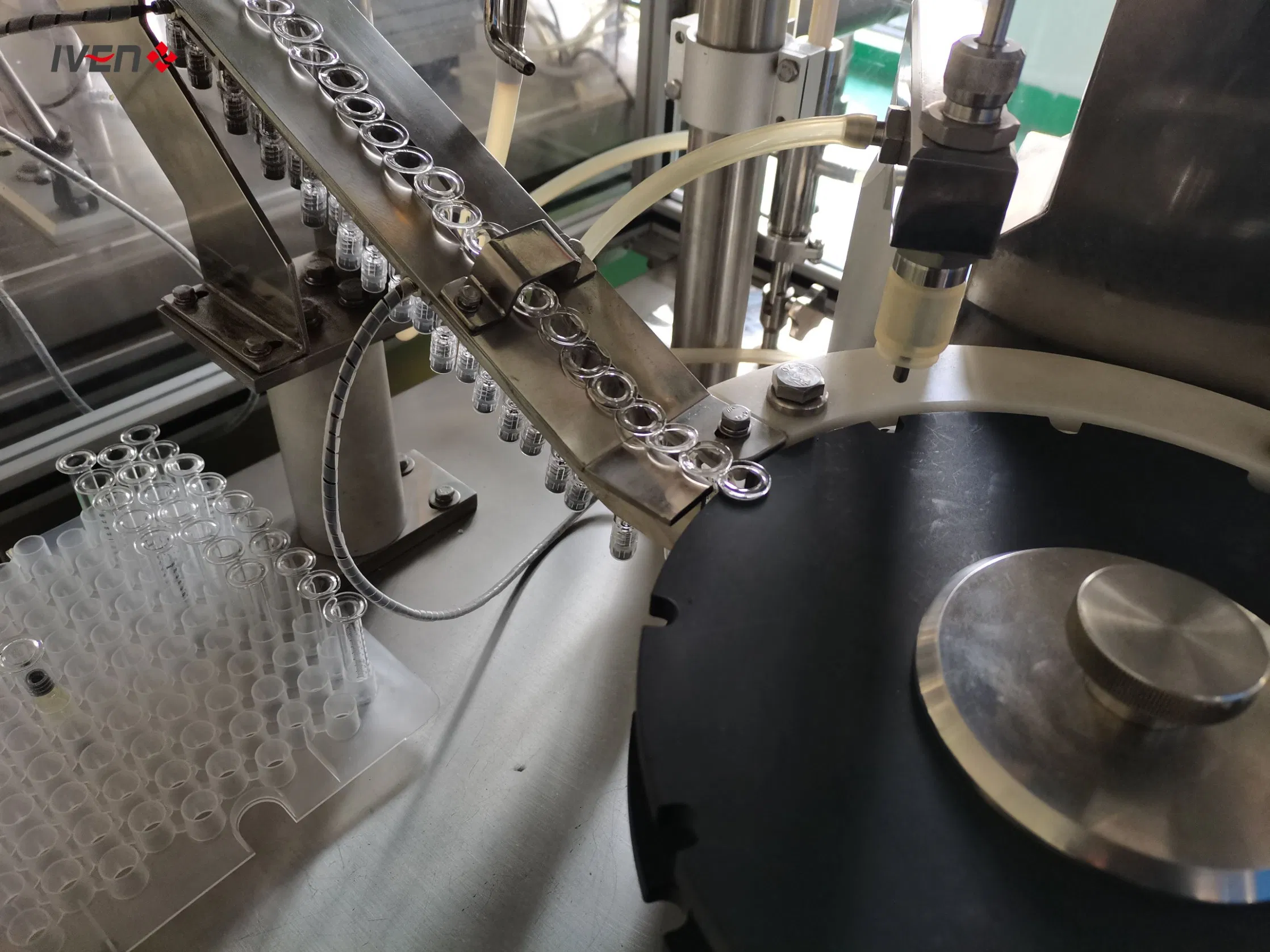

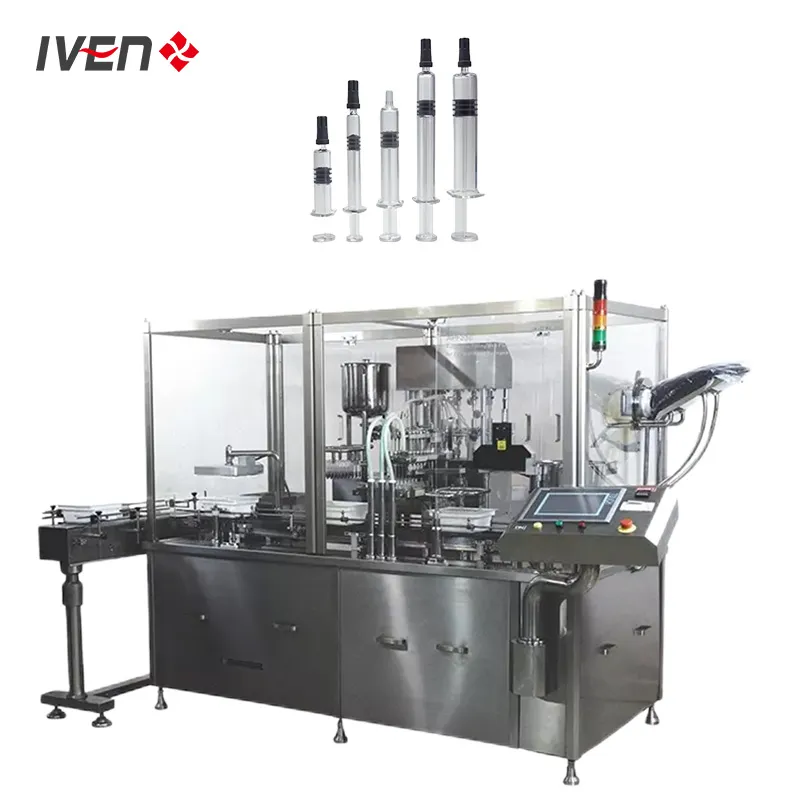

This machinery is used to automatically fill the pre-sterilized syringe (SCF type) made by major global manufacturers. The system utilizes S/S rotating pumps and multiple filling nozzles driven by servo motors. Filling volumes are set and adjusted accurately via PLC interface without the need for manual tools.
| Parameter | Specifications |
|---|---|
| Production Capacity | 2000-3500 Syringes/Hour |
| Filling Volume | 0.1-0.5ml, 0.5-3ml, 3-10ml, 10-30ml |
| Filling Nozzle | 5 sets |
| Vacuum Level | 0 to -98Kpa |
| Nitrogen | 1Kg/cm², 0.1m³/min |
| Compressed Air | 6Kg/cm², 0.35m²/min |
| Machine Weight | 950 Kgs |
| Dimension | 3050 x 1600 x 1900MM |
We provide integrated engineering solutions for worldwide pharmaceutical and medical factories, covering everything from clean rooms to automated logistics.

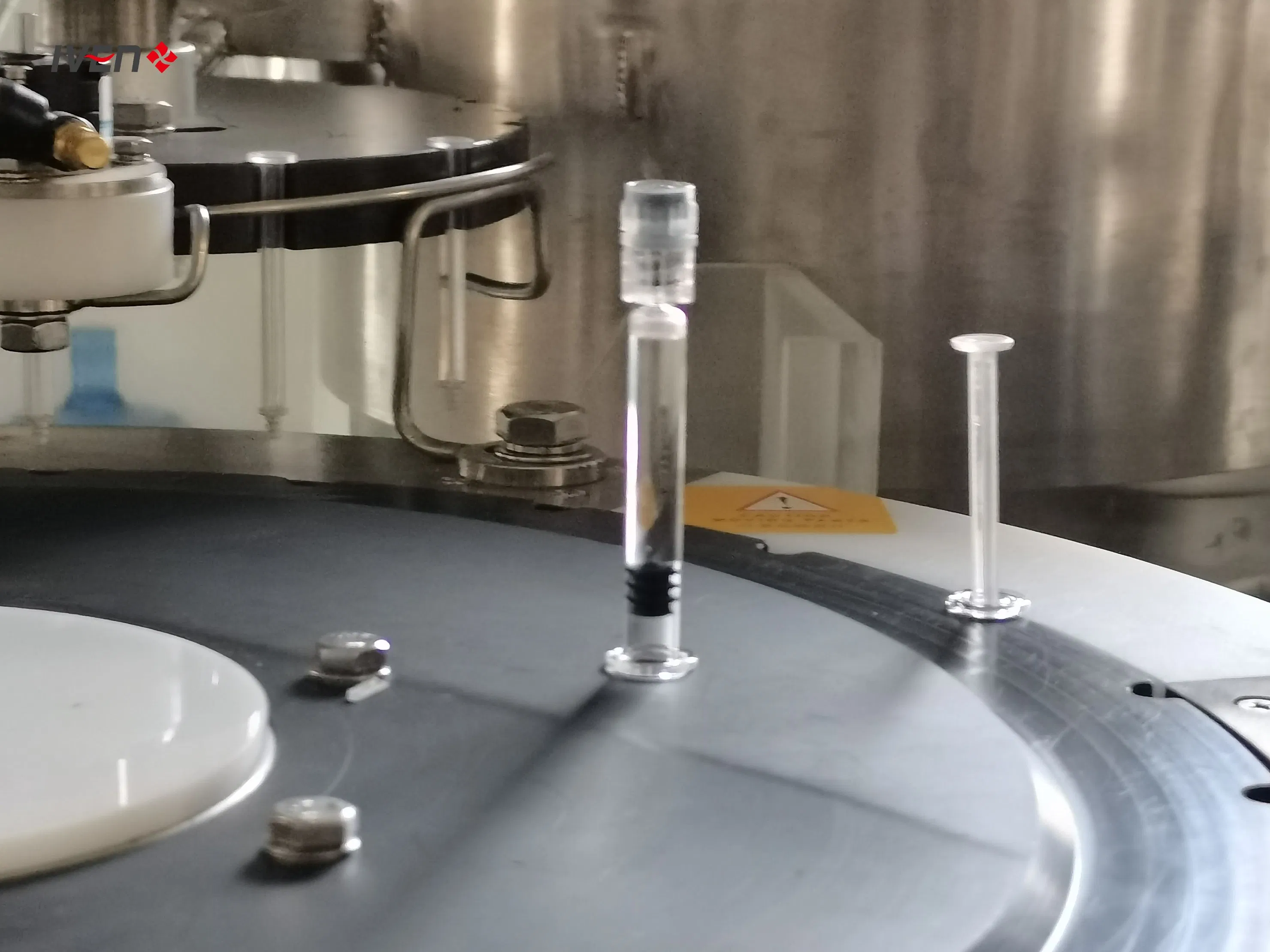

The system is designed to automatically fill pre-sterilized syringes (SCF type) with specifications ranging from 0.5ml to 10ml.
Yes, in addition to normal pharmaceutical liquids, the system is suitable for filling transparent viscous liquids such as ester acid.
All contact parts are made of SUS 316L stainless steel and medical-grade silicon rubber. The exterior is coated with SUS 304 and aluminum alloy for GMP compliance.
The system utilizes high-precision servo motors and S/S rotating pumps. Adjustments can be made directly via the PLC touch screen for consistent accuracy.

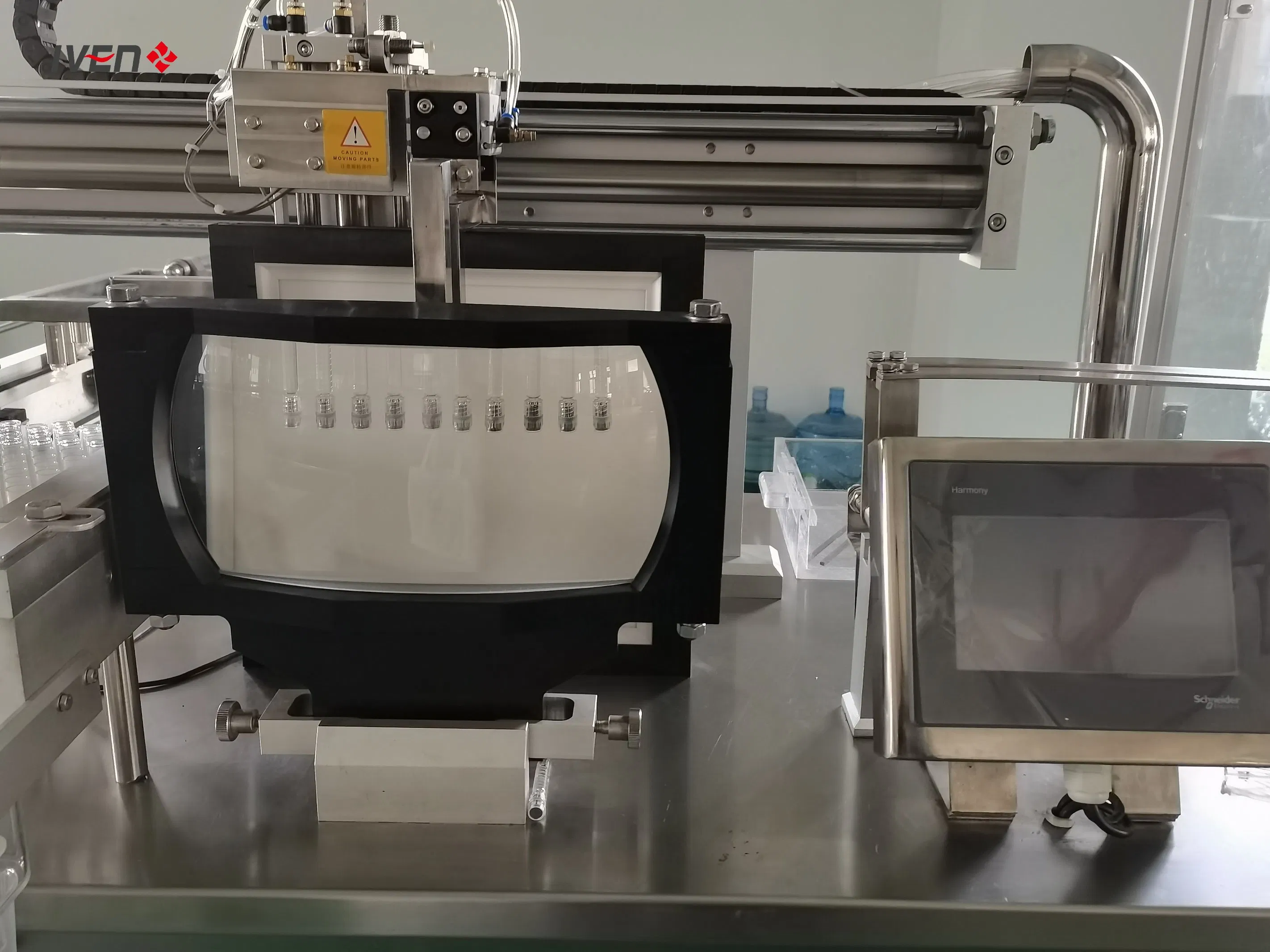

Yes, it features a Siemens color touch screen for real-time monitoring of vacuum pressure, nitrogen levels, and fault alarms with specific position indications.
We offer an optional Machine Vision System (MVS) that monitors plugging quality in real-time to ensure the highest product acceptability rates.
